I-Joist Sizes for Superior Floor Support and Long-Span Performance

I-joist sizes is key to building strong, efficient floor and roof systems. Learn the standard dimensions and how to choose the right size for your project.

I-joists, also known as engineered wood I-beams, are widely used in residential construction due to their high strength, lightweight structure, and resistance to warping and shrinking.

Choosing the right I-joist size is critical for ensuring structural integrity and performance in floor and roof systems. This guide explains I-joist sizes, dimensions, span capabilities, applications, and how they compare to traditional lumber.

I-Joist Sizes Explained: Dimensions, Span, and Applications

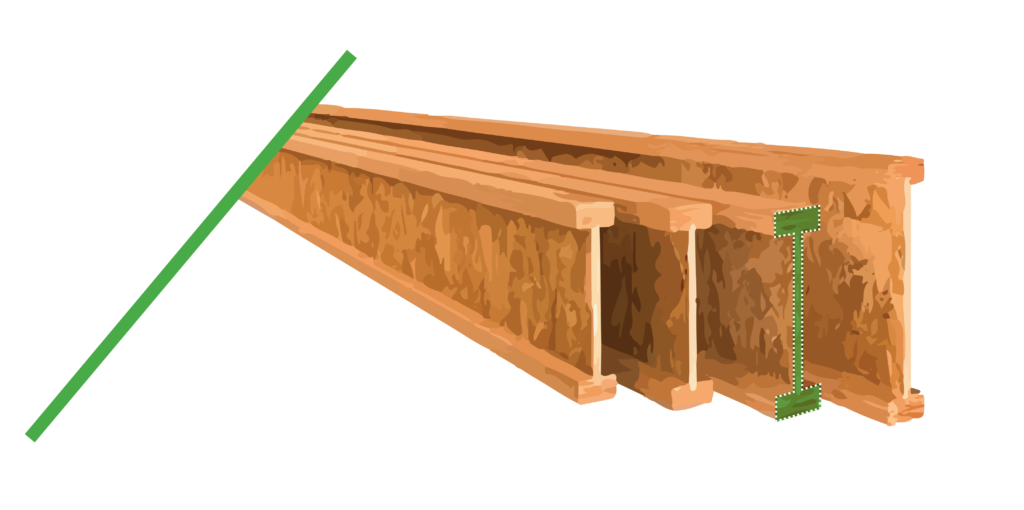

I-joists consist of top and bottom flanges and a web. Their dimensions vary, with depth, flange width, and overall length being the most critical factors. Common depths range from 9 1/2 inches to 16 inches, although some manufacturers offer sizes beyond this.

Span capabilities depend on several factors: joist depth, spacing, load, and deflection criteria.

Applications include:

• Floor systems
• Ceiling joists

• Roof rafters

Standard I-Joist Sizes and How to Choose the Right One

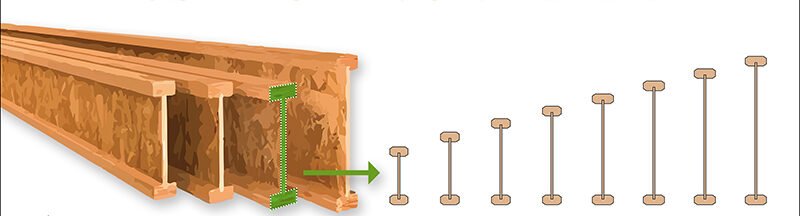

Standard I-joist sizes typically include the following depths:

• 9-1/2″

• 11-7/8″

• 14″

• 16″
  These sizes correspond with common framing needs and match common floor-to-floor height requirements.

How to choose the right size:

1. Span Requirements – Use span tables provided by manufacturers to determine the minimum depth needed.

2. Load Considerations – Know the dead and live loads.

3. Deflection Limits – Consider comfort and finish materials; more rigid floors reduce vibration and squeaks.

4. Openings – I-joists can be notched or have holes cut, but within limits defined by the manufacturer.

5. Cost and Availability – Larger joists span further but cost more and may be less available in some regions.

Always consult a structural engineer or the manufacturer’s technical data before making final decisions. At Safeway Piling and Construction, we take the guesswork out of selecting the right standard I-joist sizes. Our experienced team evaluates your project’s structural needs and building code requirements to recommend the most efficient and cost-effective solution. With Safeway, you can be confident that your framing system is strong, stable, and built to last.

I-Joist Sizes Chart: Common Dimensions and Load Capacities

Here is a simplified chart showing typical I-joist sizes and approximate spans:

Depth	Flange Width	Typical Max Span
9-1/2″	1-3/4″	15–17 feet
11-7/8″	1-3/4″	18–20 feet
14″	1-3/4″ to 2-1/2″	21–23 feet
16″	2-1/2″	24–26 feet









Understanding I-Joist Sizes for Basement and Attic Floors

Basements and attics pose unique challenges due to headroom restrictions and loading requirements:

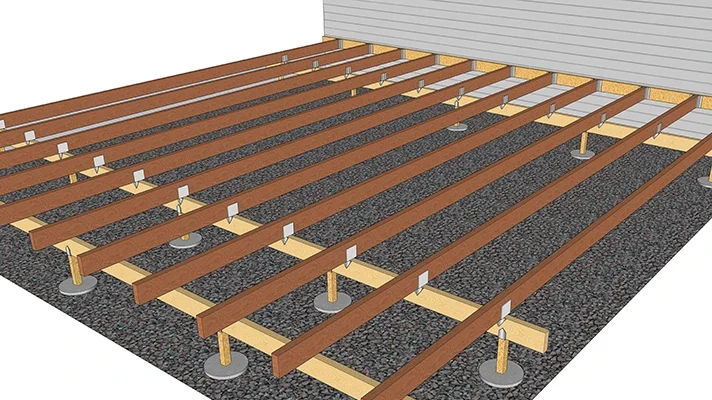

• Basement floors: Joists may support heavier mechanical systems and thicker flooring. A deeper joist, like 11-7/8″ or 14″, is common, especially when spanning over 16 feet.

• Attic floors: If unfinished or used for light storage, smaller joists may suffice. For livable attic spaces, deeper joists are required to meet building code for live loads.

In both cases, fire protection, insulation routing, and HVAC passage also influence joist selection.

Engineered I-Joist Sizes vs Traditional Lumber: What’s the Difference?

Engineered I-joists offer several advantages over traditional solid sawn lumber:

Feature	I-Joists	Solid Lumber
Span	Longer spans	Shorter spans
Consistency	Factory-made, dimensionally stable	Prone to warping and shrinking
Weight	Lighter	Heavier
Cost	More expensive per unit	Often cheaper
Sustainability	Uses less old-growth timber	Greater impact on forests

I-joists are ideal for open floor plans and long spans without intermediate supports, while traditional lumber might be more economical for small-scale or simple construction.

Building Codes, Long Spans, Soundproofing, and Installation Tips Explained

I-joists are a cornerstone of modern residential and commercial framing, offering strength, flexibility, and consistency. However, builders face an important choice when selecting I-joists: standard vs. custom sizes. Each option has specific advantages depending on project needs, building codes, and performance goals like span, sound control, and ease of installation.

At Safeway Piling and Construction, we specialize in the professional installation of I-joists according to local building codes and best practices. Whether you’re building for strength, quiet, or long-span performance, our experienced team ensures that every joist is installed safely, efficiently, and to the highest standard.

Custom vs. Standard I-Joist Sizes: Pros and Cons

Standard I-joist sizes are mass-produced in common depths like 9-1/2″, 11-7/8″, 14″, and 16″, with standardized flange widths. These are widely available and designed to fit typical residential spans and loads.

Pros of Standard Sizes:

• Readily available at most suppliers

• Cost-effective due to bulk manufacturing

• Compatible with pre-approved span tables and building codes

• Quicker delivery times

Cons of Standard Sizes:

• Limited flexibility for unique architectural designs

• May require more supports or beams for long spans

Custom I-joists, on the other hand, are manufactured to fit specific project needs. They can be ordered with non-standard depths, flange sizes, or even special materials for increased load capacity.

Pros of Custom Sizes:

• Tailored to project-specific spans and loads

• May reduce the need for intermediate supports

• Ideal for custom homes or open-concept designs

Cons of Custom Sizes:

• Higher cost per unit

• Longer lead times

• May require custom engineering approval or inspection

The Role of Building Codes in Joist Selection

Building codes, such as those in the International Residential Code, set the framework for choosing the correct I-joist size. These codes consider:

• Live and dead loads
• Deflection limits
• Joist spacing

Most I-joist manufacturers publish code-compliant span tables based on these criteria. Deviating from standard configurations—like using custom spacing or loading—requires an engineer’s stamp and building department approval.

In short, the I-joist size you choose must be code-compliant, properly supported, and documented for inspections.

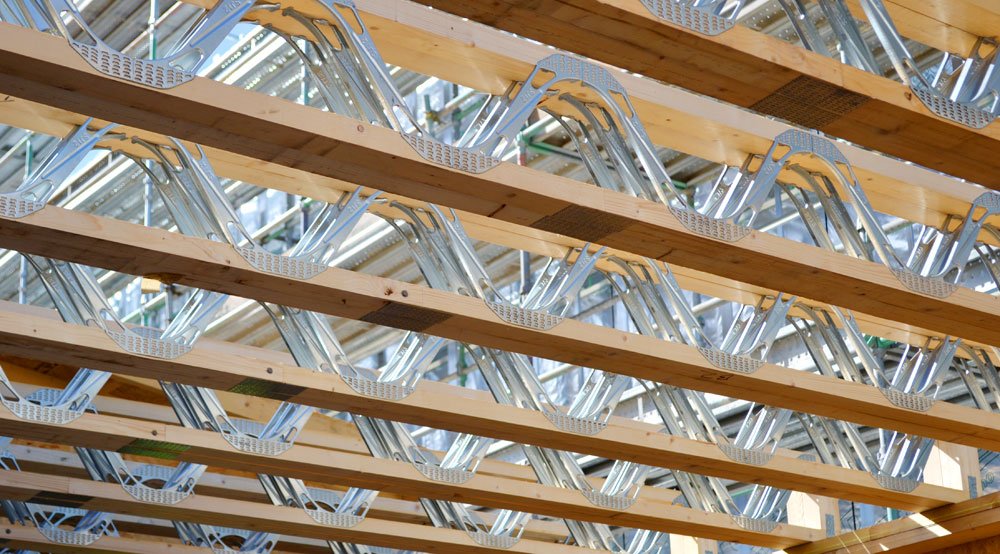

How to Span Long Distances with the Right Joist Type

Long spans—over 20 feet—are increasingly common in open-concept homes. To accommodate these, builders often use deeper joists, wider flanges, or strong materials like LVL flanges.

Key considerations for long spans:

• Deeper joists reduce deflection and vibration

• Wider flanges offer greater load distribution

• Custom joists may minimize or eliminate the need for intermediate beams or columns

• Ensure correct hole placement for HVAC, plumbing, and electrical systems to prevent weakening

At Safeway Piling and Construction, we carefully assess your project requirements—including span length, load capacity, and architectural layout—to recommend the most efficient and cost-effective I-joist sizes. Our experienced team ensures that long-span joists are installed according to structural guidelines and building codes, delivering strength, stability, and open design possibilities without compromise.



Improving Sound and Vibration Performance with Joist Selection

Floor performance isn’t just about strength—it’s also about comfort. I-joist size significantly affects sound transmission and vibration control.

Larger I-joists have less deflection and reduce floor bounce, which helps minimize vibration and sound travel. Additionally:

• Tighter spacing improves performance

• Use a resilient channel or soundproofing insulation between floors to enhance acoustic separation

• Heavier, deeper joists reduce low-frequency vibrations common in footfall noise

A well-chosen I-joist size contributes to a quieter, more stable floor, especially important in multi-story homes or sound-sensitive rooms like home theaters.

Installation Guidelines Based on Joist Type and Size

Installing I-joists properly is crucial to maintaining their structural integrity. Here are size-specific tips:

1. Smaller Joists 9-1/2″, 11-7/8″:
   • Easier to handle manually

   • Ideal for short spans and tight headroom areas

   • Ensure load limits aren’t exceeded—these joists are more flexible

2. Mid-Size Joists 14″:
   • Versatile for most residential applications

   • Check for HVAC duct clearance before installation

   • May require bracing or blocking to reduce vibration

3. Large/Custom Joists 16″+:
   • Heavier—may require team lifting or mechanical assistance

   • Coordinate early with trades for hole placement and service routing

   • Use a rim board and hangers rated for larger sizes


General installation best practices include:

• Never cut or notch flanges

• Follow the manufacturer’s guidelines for drilling holes in webs

• Provide proper end bearing

• Use squash blocks for concentrated loads


Conclusion

At Safeway Piling and Construction, we understand that selecting the right I-joist sizes is critical to the strength, efficiency, and long-term performance of any residential or commercial structure. Whether you need standard I-joists for typical spans or custom sizes for unique architectural designs, our team ensures that every project meets structural demands, building codes, and client expectations. From optimizing span length to enhancing soundproofing and simplifying installation, choosing the proper I-joist size can make all the difference. Trust Safeway to deliver precision, safety, and lasting quality in every beam we install.
